Roof Box Size Guide

Find the right size roof box for your needs

Internal Roof Box Dimensions

Range	Model	Length (cm)	Width (cm)	Height (cm)	Volume (L)	Weight (Kg)	Max Ski Length (cm)

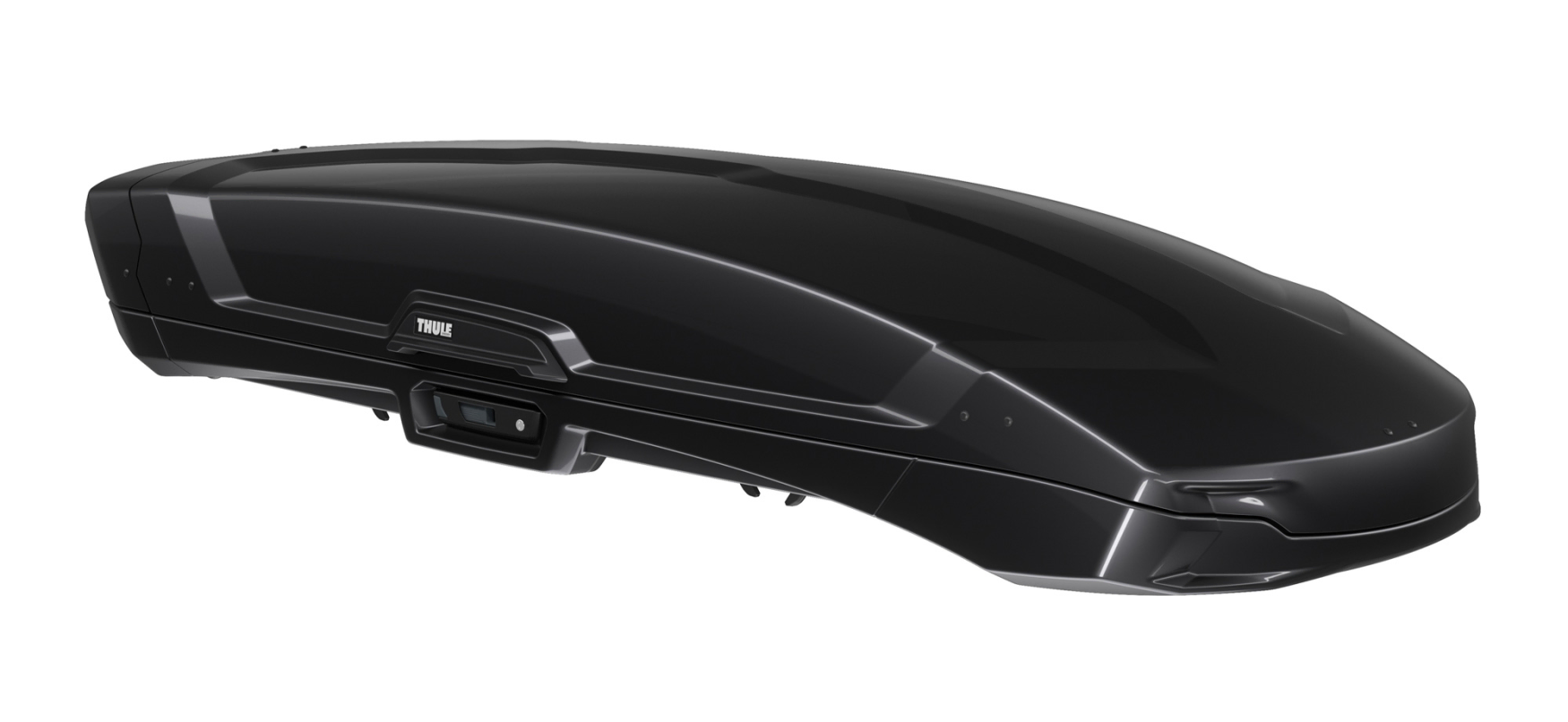

	Thule Vector M	186	78	29.5	360	29	185
	Thule Vector L	204.5	78	32.5	430	30	205
	Thule Vector Alpine	204.5	78	28	380	30	200

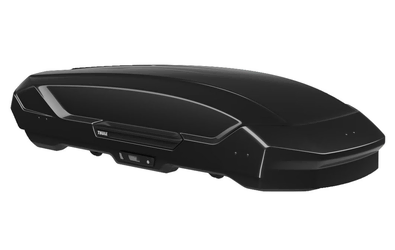

	Thule Motion XT Sport	177	57	37	300	16	175
	Thule Motion XT M	164	76	40	400	17.5	155
	Thule Motion XT L	182	80	36	450	20	180
	Thule Motion XT XL	200	80	38	500	23.5	200
	Thule Motion XT XXL	222	84	41	610	25.5	215
	Thule Motion XT Alpine	222	85	30	450	25	215

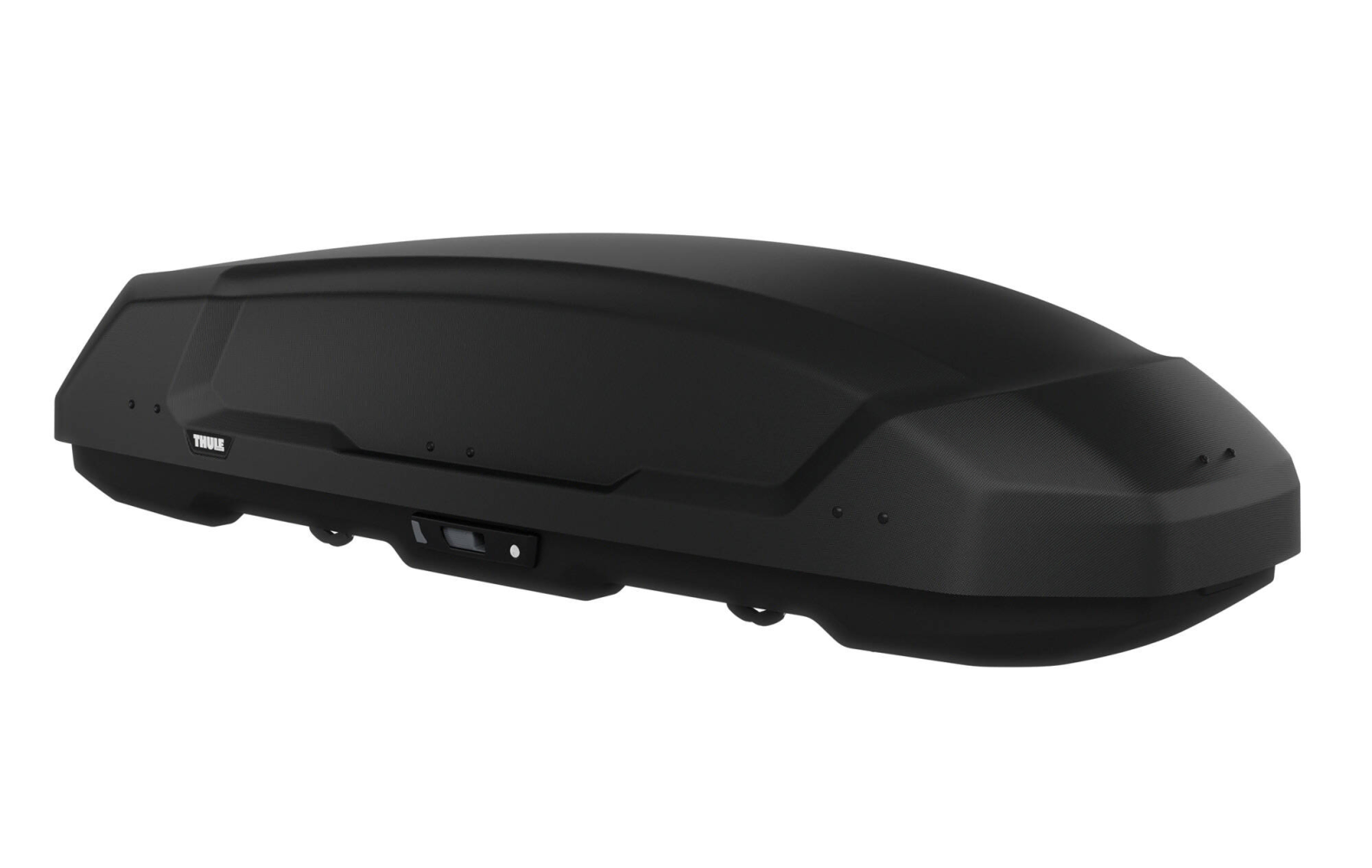

	Thule Force XT Sport	179	52	37	300	15	175
	Thule Force XT S	127	78	34	300	14	X
	Thule Force XT M	162	71	40	400	16	155
	Thule Force XT L	177	73	41	450	19	180
	Thule Force XT XL	197	75	39	500	21	200
	Thule Force XT Alpine	218	59	37	420	19	215

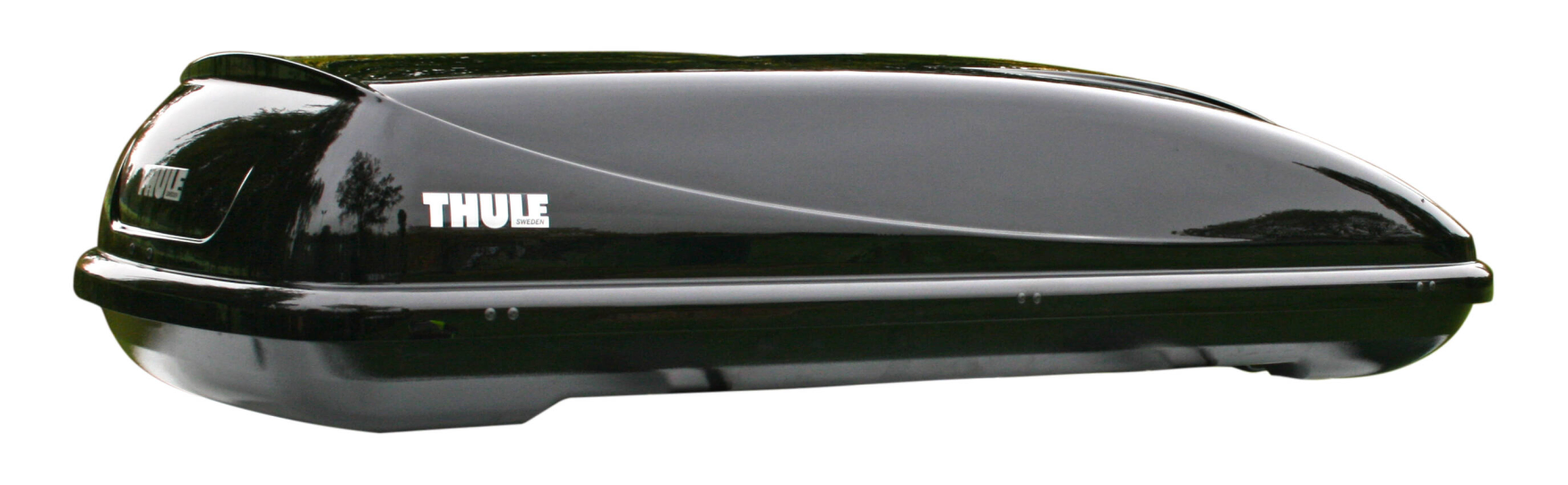

OCEAN IMAGE	Thule Ocean 80	127	81	36	320	10	X
	Thule Ocean 100	135	84	38	360	12	X
	Thule Ocean 200	170	75	39	450	14	160
	Thule Ocean 600	180	57	34	310	12	170
	Thule Ocean 700	225	65	35	450	15	210
	Thule Ocean 780	190	73	38	470	18	180

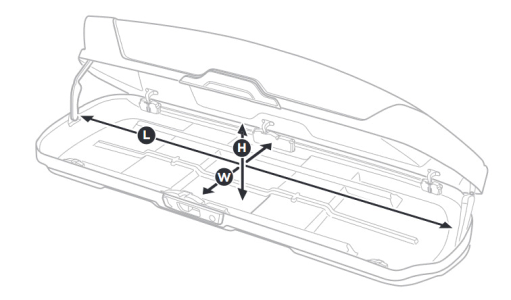

Length: The longest parallel measurement from the rear interior of the cargo box to the front of the box.*

Width: The widest usable parallel measurement from one inside point of the cargo box to the opposite side.*

Height: Measuring from the lowest continuously usable point in the cargo box to the highest point of usable space within the cargo box.*

* The longest usable internal distance for the peak length/width/height perspective of the cargo box. The definition of usable peak
distance is considered if objects such as skis (length) and ski boots (Width & Height) would be able to fit within the Peak Dimensions.
